Thermostat Swap

Tools you will need:
Channel Locks
  • Funnel
  • Catch Pan*
  • A rag or two
  • 10 mm socket
  • 3" extension
  • ratchet
  • Torque Wrench
  • 1 Gallon of Dex Cool Coolant**
  • 1 Gallon of water (preferably Distilled)
  • Expect approximately 20 minute – 60 minute change time
    * You will need something that holds a gallon of fluid at the least

    **You can choose to reuse your fluid but it is best to put new coolant in the engine.  Dex Cool Coolant GM Part Number 12346290
    Date:  July 4, 2000
    Car:  1999 Z28 Camaro, 13,820 miles
    Installers:  Eric and Kelly Barger
    Email:  help@installuniversity.com
    People who helped us from major tech talk to general advice:
    • eboggs_jkvl)
      Elmer Boggs (
    • Jack (Jack98SS)
    • Eddie (EddieSilver98)
    • mrgto
    • ED B98SS
    • Amarillo
    • Patman
    • badaSS#141
    • Tony (Nine Ball)
    • ZPilot
    • Special K '98 T/A
    • CUJO98TA
    • Blackhawk2000

    When purchasing, viewing, using, and/or any other method applied to this publication you agree to the following statements.  You, your next of kin, heirs or assigns release www.installuniversity.com, all other persons associated in the making, production, participation, and sale of this publication.  Rephrased in plain English:  When you purchase this CD, book, or view this web page you, your next of kin, heirs or assigns agree not to sue any associated persons with the publication for any accident or damage in ANY form (mental or physical to your car and/or yourself) because of this publication or your failure to heed proper safety, maintenance and/or modification procedures.  You also agree that your next of kin, heirs or assigns cannot sue all persons associated in the making, production, participation, and sale of this publication.
    Perform all these installs at your own risk.  Know how to use all of your shop equipment and take necessary safety precautions when performing ANY modifications and or maintenance items to your vehicle.  Seek the advice of a paid professional and do not substitute this publication for the advice of a paid professional.  This product is how we accomplished our installs and is not meant to be carved in stone.  We are not responsible for a mistake, misprint, or any other error found in this guide.  This guide is intended as a supplement and not to be your only source of information.
    Purpose:  Replacing the stock thermostat with a thermostat that has a lower opening temperature has several advantages.  The cooler your car runs the better for performance at the track; that is the theory at least.  The thermostat cannot completely control the operating temperature but steps in earlier than the stock thermostat to help control it.
    Preface:  Do this install when the engine is cool.  Otherwise, you WILL burn yourself.  Be sure you are performing this thermostat swap on a cool car.  Before you start this install be sure you know how to use all of your shop equipment.  Take your time and be careful.
    1.  Read this whole step before proceeding any further.
    Locate and turn the radiator cap counterclockwise slowly (See Figure 1).  This should relieve any unwanted pressure from the radiator.  If you hear a hissing or spurting sound, STOP!  Wait until the pressure relieves itself before opening the cap all the way.  Once the pressure is relieved, place the cap back on (no need to tighten the cap) to make sure you keep any contaminants out of the radiator.
    Figure 1
    radiator_cap_locator
    2.  We parked our car on level ground (did not use ramps or jack stands).  Locate the radiator drain plug (see Figure 2).  This view is underneath the front of the car looking toward the driver's side.
    Figure 2
    drain_cock_locator
    3.  Now is a good time to place the catch pain directly underneath the drain cock.  Turn the drain cock valve counterclockwise until coolant begins to pour out of the valve that is turned down toward the ground (see Figure 3).  Be careful not to unscrew the drain cock valve all the way.  You will get a BIG surprise when coolant flows out that end three times as fast.
    Figure 3
    drain_cock_open
    4.  We drained all the coolant out of the radiator.  When the coolant stops flowing, tighten the radiator drain cock to 13 in-lb.  Look at Figure 4 to see how much coolant drained out of the radiator.
    Figure 4
    fluid_level_radiator
    5.  Locate the thermostat  and thermostat hose clamp (see Figure 5). Push your catch pan underneath the thermostat.  Go ahead and push the plastic push screw back out of the thermostat housing.
    Figure 5
    thermostat_locator
    6.  We then removed both 10 mm screws out of the thermostat.  We used a 3" extension on our ratchet and socket combo.  You can see the extension and screws in Figure 6.
    Figure 6
    thermostat_screws_removal
    7.  Use a pair of pliers (channel locks, etc.) and squeeze the hose clamp together (see Figure 7).  Then pull the hose off the thermostat by simply twisting the thermostat inside the hose.  We found this to be the easiest way to remove the thermostat from the hose.  When you get the thermostat off you will have a large amount of fluid drain immediately.  We found the amount to be approximately the same amount we drained out of the radiator.
    Figure 7
    thermostat_hose_removal
    8.  Take a rag and try to clean up around the opening in the block where you pulled the thermostat out.

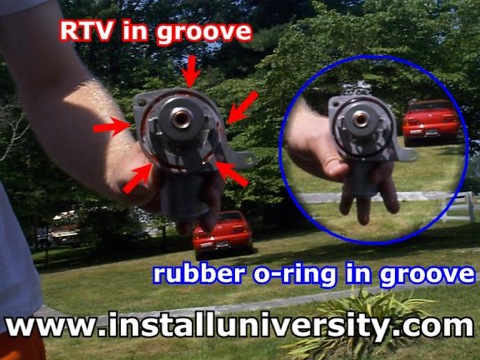

    9.  You will notice that your o-ring will be free and not in the groove of your new thermostat.  You will need to make it stick in the groove to ensure that you seal the thermostat to the block properly.  The way we accomplished this was to place some high temperature silicone gasket maker in the groove where the rubber o-ring goes See Figure 8).  We placed the RTV silicone gasket maker in several spots around the groove.  Then place the rubber o-ring in the groove.  Wipe clean and you are ready to install the thermostat.
    Figure 8
    rubber_oring_install

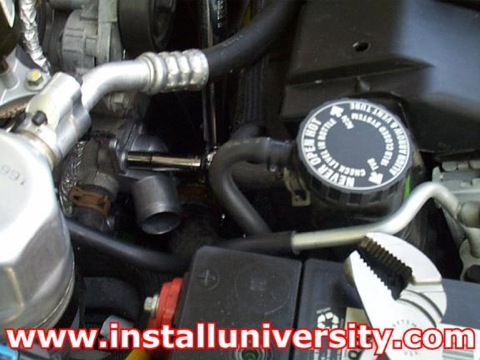

    10.  Carefully place the new thermostat back onto the block and get your two 10 mm screws started in their holes.  Once again, check to make sure your o-ring is still sealed properly in the groove.  Use a torque wrench to tighten both 10 mm screws to 89 in-lb (7.42 ft-lb) (See Figure 9).
