Throttle Body Bump Stop Mod

Tools & parts you will need:
Dremel tool
Expect approximately 45 minute – 3 hour install time.

Date:  August 11, 2000
Car:  1999 Z28 Camaro,
Installers:  Eric and Kelly Barger
Email:  help@installuniversity.com
People who helped us from major tech talk to general advice:
1.  Elmer Boggs (eboggs_jkvl)

When purchasing, viewing, using, and/or any other method applied to this publication you agree to the following statements.  You, your next of kin, heirs or assigns release www.installuniversity.com, all other persons associated in the making, production, participation, and sale of this publication.  Rephrased in plain English:  When you purchase this CD, book, or view this web page you, your next of kin, heirs or assigns agree not to sue any associated persons with the publication for any accident or damage in ANY form (mental or physical to your car and/or yourself) because of this publication or your failure to heed proper safety, maintenance and/or modification procedures.  You also agree that your next of kin, heirs or assigns cannot sue all persons associated in the making, production, participation, and sale of this publication.
Perform all these installs at your own risk.  Know how to use all of your shop equipment and take necessary safety precautions when performing ANY modifications and or maintenance items to your vehicle.  Seek the advice of a paid professional and do not substitute this publication for the advice of a paid professional.  This product is how we accomplished our installs and is not meant to be carved in stone.  We are not responsible for a mistake, misprint, or any other error found in this guide.  This guide is intended as a supplement and not to be your only source of information.
Purpose:   When the gas pedal is pressed that pulls the throttle cable.  The throttle cable pulls on the cam that rotates the throttle body blade.  The amount the blade opens is directional proportional to the amount of air that enters the intake manifold.  You want the blade to open as close to 90° as possible.  In most cases your throttle body blade stops way short of the 90° from the factory.  You will need Auto Tap or equivalent scan tool (Tech II) to perform this installation CORRECTLY!!
Preface:  Before you start into this install be sure you know how to use all of your shop equipment.  Take your time and be careful.
1. You will need to hook up a scan tool (i.e. Auto Tap, Tech II) and note the TPS Voltage (found under the Fuel Systems menu).  You want to just turn the key forward but do not start the car.
In later versions of Auto Tap, it will show a number in degrees.  Otherwise, you might end up a voltage as a number.  Our version of Auto Tap showed the number in degrees.  After hooking up Auto Tap we pressed the gas pedal to the floor board and noted the our throttle body blade was opening 78.8°.

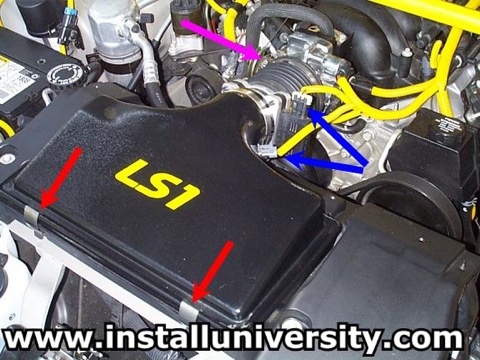

2.  We removed the air filter, air box, mass-air-flow (MAF) housings, MAF sensor, and rubber tubing (see Figure 1).  Undo the air box clamps (see red arrows in Figure 1), remove the IAT and MAF sensor harnesses (see blue arrows in Figure 1), and loosen the the metal band clamp using a flat-head screwdriver on the rubber bellow on the throttle body (see pink arrow in Figure 1).
Figure 1
air_induction_removal
3.  Ideally, you would like the opening to be 90° but this is not practical.  If the number of degrees exceeds 90°, then you will set a Service Engine Soon (SES) light.  In order to let your throttle body blade open more you have to grind some metal off of the throttle body bump stop.  Locate the throttle body bump stop in Figure 2.
Figure 2
tb_bs_locator
4.  You will need to take your dremel tool and grind down the bump stop where the throttle cable cam touches.  It is important that you constantly check the progress you make while you are grinding.  Lift the cam and check the number of degrees the throttle body blade is opening.  You don't want to go over 90° Just lift the cam up and note where it touches the bump stop (see Figure 3).  Take a look at the bump stop mid way through the process (see Figure 3).  Auto Tap reported that we were at 83.5°.  It took us 45 minutes to reach this point.
Figure 3

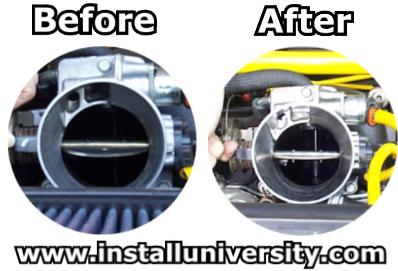

5.  You can see the finished product in Figure 4.  You can clearly see the difference before and after.  The final measurement taken from Auto Tap was 87.8° and that is a good conservative place to stop.  The added 9° of opening has resulted in the throttle body blade opening more flat than before.  Remember, if you open the throttle body more than 90° you will set the Service Engine Soon (SES) light.
Figure 4

 tb_bump_stop_before_after

6.  Replace your air induction setup back on the car and you are ready to go.
Comments:  This is a good, free modification to perform on your car.  You heard us say it before and we will say it again, "Every little bit helps".
