!MAF:  Porting the Mass-Air-Flow Housing

Tools you will need:
Mass-Air-Flow Housing
  • Dremel tool and/or hacksaw
  • Sand Paper

  •
    Car:  1998 LS1 Firehawk
    Installer:  Patman
    Email:  gatts@home.com

    Date:
    When purchasing, viewing, using, and/or any other method applied to this publication you agree to the following statements.  You, your next of kin, heirs or assigns release www.installuniversity.com, all other persons associated in the making, production, participation, and sale of this publication.  Rephrased in plain English:  When you purchase this CD, book, or view this web page you, your next of kin, heirs or assigns agree not to sue any associated persons with the publication for any accident or damage in ANY form (mental or physical to your car and/or yourself) because of this publication or your failure to heed proper safety, maintenance and/or modification procedures.  You also agree that your next of kin, heirs or assigns cannot sue all persons associated in the making, production, participation, and sale of this publication.
    Perform all these installs at your own risk.  Know how to use all of your shop equipment and take necessary safety precautions when performing ANY modifications and or maintenance items to your vehicle.  Seek the advice of a paid professional and do not substitute this publication for the advice of a paid professional.  This product is how we accomplished our installs and is not meant to be carved in stone.  We are not responsible for a mistake, misprint, or any other error found in this guide.  This guide is intended as a supplement and not to be your only source of information.

    Purpose:  This modification will replace the mass- air- flow housing.  This will smooth out and increase air flow through the mass air flow housing giving your car some extra horsepower.
    Preface:  Before you start into this install be sure you know how to use all of your shop equipment.  Take your time and be careful.

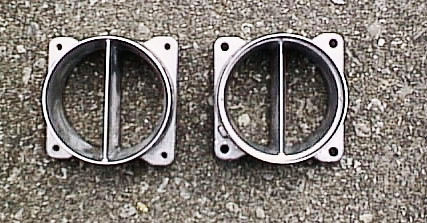

    1.  Here are the steps involved in porting the MAF. First of all, remove the MAF from the intake, and take the 3 pieces of it apart. Set the center electronics section (black section with the wire sensors) aside, away from the other parts to keep out of harms way.  Here are the two halves unmodified. Notice the center dividers, this is what you need to remove, on both halves (see Figure 1 below).
